Repeater
UVNC Repeater has two unique functions:
Mode 1: Allows for connection to multiple servers (in listen mode), using only one port. All connection data flows through the repeater, allowing connection to multiple servers through a single port forward or tunnel.
Mode 2: Allows both a Viewer and Server to connect together using the repeater as a PROXY. All connection data flows through the repeater, allowing both the server and viewer to be behind firewalls or routers.



Usage repeater

UltraVNC Repeater is an UltraVNC addon
There are two modes available with the UltraVNC repeater: mode I and mode II
While mode I is used for UltraVNC Server and Viewer both in normal mode, mode II works with the server in listening mode.


UltraVNC Repeater Mode I

How does it work

how it works

Usage

Viewer can be behind Nat router or directly connected to the internet.
Instead of forwarding several ports, you only need to forward 1 port
If the PC that runs the Repeater has access to the local DNS server, you can use your local DNS names instead of 10.10.10.12.
This could be handy when you have a dynamic DHCP server allocating ip addresses for your PC.

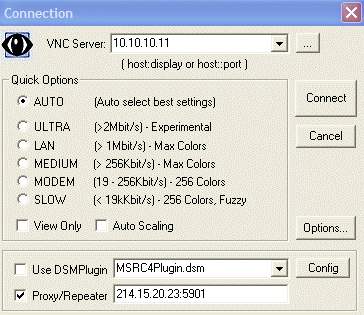

To connect the the server running on 10.10.10.11 Port 5900

example

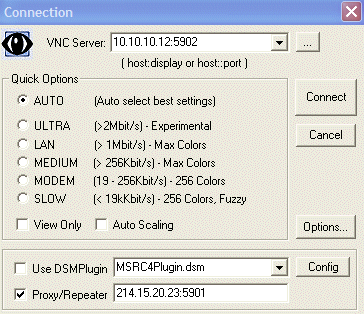

To connect to the server running on 10.10.10.12 Port 5902

example

Repeater settings

settings

Extra options boxes

Enable mode I / Enable mode II
Here you decide if you want to run the repeater in mode I, mode II or if you enable both modes simultaneously.
Restrict access to port
If you run all the vncserver on the same port
10.10.10.11:5900
10.10.10.12:5900
You can replace the 0 in this field by 5900.
The repeater is the restricted to connections with ports 5900
Allow connection to server
If you activate this option (v), the repeater can only connect to the specified ip addresses.
10.10.10.12;10.10.10.13 -> you can only connect to 12 and 13
10.10.10. -> you can connect to all 10.10.10.X, this way you can block access to any other Subnet (10.10.11.X)
Refuse connection to server
If activated you can tell with server you cannot access
10.10.10.15 -> you can connect to all except 15

Syntax for allow/refuse

A.B.C.D
A.B.C.
separator ";"
Address allow/refuse have to be ip addresses. You cannot use DNS names in those fields.

UltraVNC Repeater Mode II

In mode II both server and viewer initiate an outgoing connection.
Viewer (normal mode)
Server (invers connection)
Repeater have to run on a machine that can be accessed from server and viewer PC.
Open on the internet (DMZ zone)
Internal, but with 2 ports forward by the Nat router
Situation is indicated by the lower image of the repeater settings window.

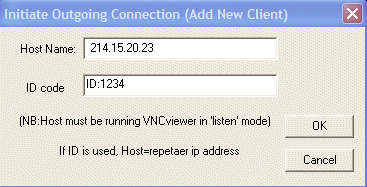

Server settings

server settings

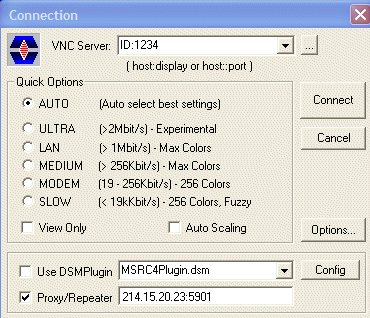

Viewer settings

viewer settings

Repeater settings

settings

Repeater logging

logging

In real life, replace localhost by the ip_address of the server running the Repeater
For localhost test, remember to select allow loopback in WinVNC Server properties

Accept = port the viewer connect
Listen = port server connect (outgoing connection)
Restricts Ports: need to be 0;
Allow and deny: leave unchecked, can not be used in mode II
